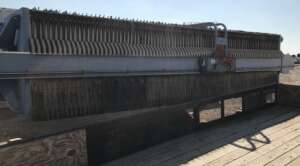

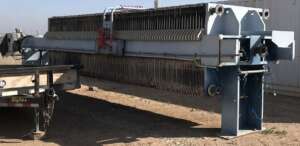

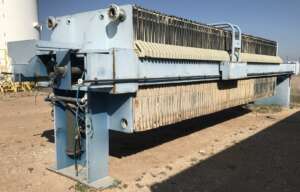

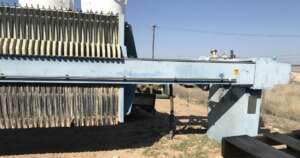

1271975 - FILTER, PLATE, 1200MM, POLY, 1980SF, 117CF, PACIFIC, REC.PLT, PLATE SHIFTER [1]

  • MFD.BY:Pacific Press Co
  • DATE MFD:2000 approx.
  • TYPE:Plate and Frame type, Hydraulic closure filter press. Plates are flat on both sides, media cloth is fitted between each pair of plates and product to be filtered is pumped through media into plate. Plate has an integral drainage grid with passages drille
  • MODEL:1200 SERIES, P8E132A-20
  • PLATE-SIZE:1200mm

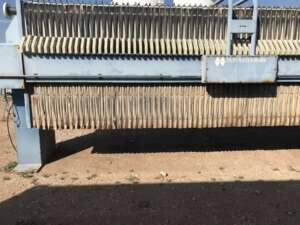

  • PLATE-TYPE:Recessed plates, 2-1/2" thick, cake thickness 1-1/4" between 2 plates.
  • PLATE-STYLE:5 eye closed delivery. 4 corner outlets 2". Center feed eye, 4"
  • PLATE-RECESS:16mm approx.[5/8"]
  • MAT'L CONSTRN-PLATES:Polypropylene
  • MAT'L -CLOTH MEDIA:Polypropylene
  • MAX. FILTER AREA:2152 Sq.Ft. approx. w/100
  • APPROX.FILTER VOLUME:117 Cu.ft. approx.
  • MAX.FILTER VOLUME:127 Cu.Ft.approx.
  • PLATE SHIFTER:Yes, overhead, semi-automatic.

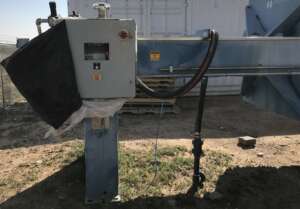

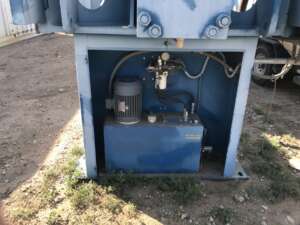

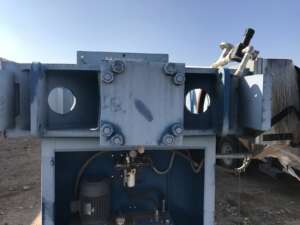

  • CLOSURE TYPE:Hydraulic, double acting hydraulic ram, w/ pmneumatic over hydraulic powerpack and controls.
  • CLOSURE PRESSURE:3800# approx.
  • FILTERING PRESSURE:100# approx
  • PRIOR SVC:Wastewater, sand, grit
  • SHIPPING SIZE-W X H X L:5'W X 6'H X 40'L
  • APPROX. WEIGHT-LBS:45000#
