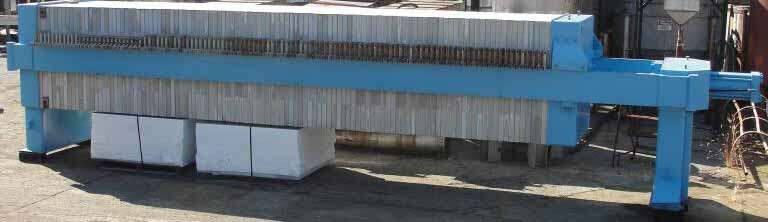

TYPE:Recessed plate, Hydraulic closure filter press. Squeeze Plates are recessed on both sides, media cloth is fitted between each pair of plates and product to be filtered is pumped through media into plate. Plate has an integral drainage grid with passages

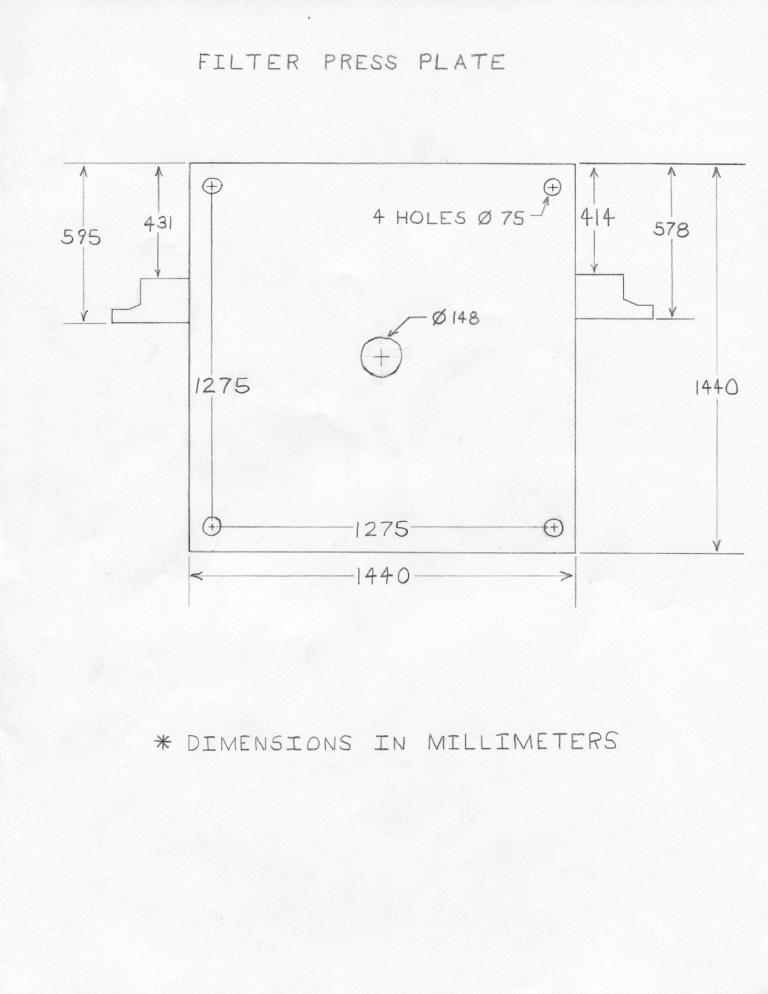

PLATE-SIZE:1450mm, 57"sq. x 63mm/2.5" thick

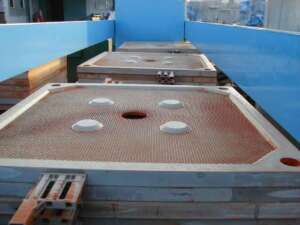

PLATE-TYPE:Standard flush mating solid recessed chamber plates (106), PLUS one recessed head and one recessed tail plate. Side rail support. Cloth alignment pegs on top surface. Rated 100# chamber pressure.
PLATE-STYLE:5 eye closed delivery. Corner feed eyes approx.90mm dia on 515mm centers. Center closed filtrate discharge.
PLATE-RECESS:16mm approx. Cake approx 31mm thick.
MAT'L CONSTRN-PLATES:Polypropylene
MAT'L -CLOTH MEDIA:Polypropylene.
MAX. FILTER AREA:4000 Sq.Ft.
APPROX.FILTER VOLUME:194 Cu.Ft.
MAX.FILTER VOLUME:200 Cu.Ft.
PLATE SHIFTER:NA
CLOSURE TYPE:Hydraulic, single double acting hydraulic ram w/electric powerpack.
CLOSURE PRESSURE:3300#. Hydraulic power pack 3700# relief pressure.
