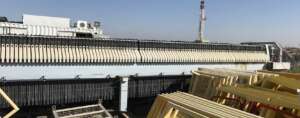

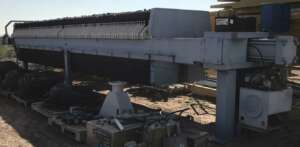

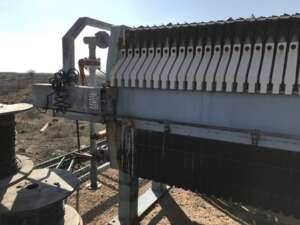

1271973 - FILTER, PLATE, 1500MM, POLY, 3566SF, 175CF, PACIFIC, REC.PLT, PLATE SHIFTER [1]

  • MFD.BY:Pacific Press
  • DATE MFD:2000
  • TYPE:Plate and frame filter press. Plates are recessed on both sides, media cloth/paper is fitted between each pair of plates and product to be filtered is pumped through media into plate, which has an integral drainage grid with passages drilled from it to t
  • MODEL:1FP1500N32L-89/102-175/200ESR
  • PLATE-SIZE:59"square (1500mm x 1500mm) 40mm thick approx.
  • PLATE-TYPE:Recessed plate, non-gasketed
  • PLATE-STYLE:4 corner eye return, center feed.
  • PLATE-RECESS:0.63" (1.25" cake thickness) [32mm]. Approx. 1.97CF/Chamber
  • MAT'L CONSTRN-PLATES:Polypropylene
  • MAT'L -CLOTH MEDIA:Polypropylene
  • MAX. FILTER AREA:4087 SF
  • APPROX.FILTER VOLUME:175 CF
  • MAX.FILTER VOLUME:200 CF
  • PLATE SHIFTER:Mechanical. Automatic

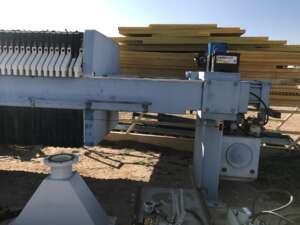

  • CLOSURE TYPE:Hydraulic double acting ram 12" dia x 30"stroke. Electro-Hydraulic power pack with reservoir, filter, pump.
  • CLOSURE PRESSURE:3300# [Relief set at 3700#]
  • FILTERING PRESSURE:100#
  • PRIOR SVC:Waste water/ Drilling mud related. Not HOT
  • COMMENTS:88 plates + 1 head plate & 1 end plate (89 chambers). Plate shifter. 26" flooor clearance.nIncludes double acting electro/hydraulic power pak, control panel for automatic operation, automatic plate shifter, electric light curtain.
  • SHIPPING SIZE-W X H X L:7'3''W X 8'H X 40'L
  • APPROX. WEIGHT-LBS:65000#
