1271869 - FILTER, PLATE, 1500MM, POLY, 5100SF, 225CF, HYD, JWI, REC.PLT, PLATE SHIFTER [1]

  • MFD.BY:JWI
  • DATE MFD:2005 approx.

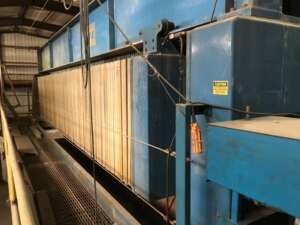

  • TYPE:Plate and frame filter press. Plates are recessed on both sides, media cloth/paper is fitted between each pair of plates and product to be filtered is pumped through media into plate, which has an integral drainage grid with passages drilled from it to t
  • MODEL:1500/G32-117-225SYLO
  • PLATE-SIZE:59"square (1500mm x 1500mm) 40mm thick approx.
  • PLATE-TYPE:Recessed plate, gasketed
  • PLATE-STYLE:4 corner eye return, center feed.
  • PLATE-RECESS:0.63" (1.26" cake thickness) [32mm]. Approx.
  • MAT'L CONSTRN-PLATES:Polypropylene
  • MAT'L -CLOTH MEDIA:Polypropylene
  • MAX. FILTER AREA:5100 SF
  • APPROX.FILTER VOLUME:225 CF
  • MAX.FILTER VOLUME:225 CF
  • PLATE SHIFTER:Mechanical. Automatic pendant type.

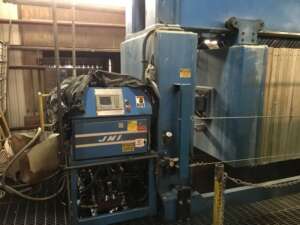

  • CLOSURE TYPE:Hydraulic double acting ram, Electro-Hydraulic power pack with reservoir, filter, pump.
  • CLOSURE PRESSURE:3000# approx.[tbc]
  • FILTERING PRESSURE:100#

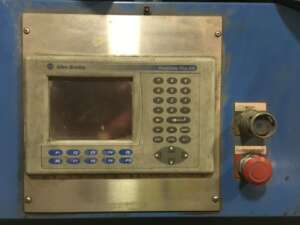

  • COMMENTS:115 plates + 1 head plate & 1 end plate (54 chambers). Plate shifter.nIncludes double acting electro/hydraulic power pak, control panel for automatic operation, automatic plate shifter, electric light curtain.
  • SHIPPING SIZE-W X H X L:7'W X 8'H X 50'L
  • APPROX. WEIGHT-LBS:75000#
