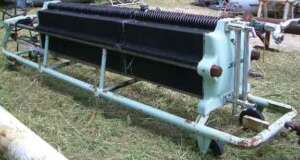

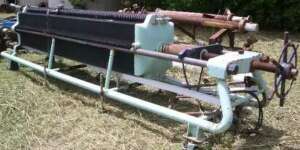

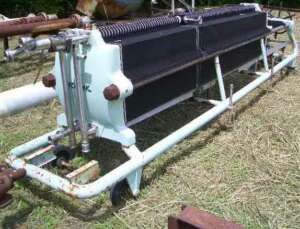

TYPE:Plate and frame filter press. Typically used in beverage applications with low and fine solids contents to "polish" the liquid. Plates are recessed on both sides approx.1/8". Media cloth/paper is fitted between each pair of plates and product to be filter
PLATE-SIZE:24" x 24"
PLATE-TYPE:Recessed plate.
PLATE-STYLE:4 eye, closed delivery.
PLATE-RECESS:1/8" approx.
MAT'L CONSTRN-PLATES:POLY. Polypropylene
MAT'L -CLOTH MEDIA:None installed (paper/cloth/mesh screen to suit)
MAX. FILTER AREA:1,385 SF
APPROX.FILTER VOLUME:16 CF
MAX.FILTER VOLUME:20 CF
PLATE SHIFTER:NA
CLOSURE TYPE:Hydraulic, manually actuated.
FILTERING PRESSURE:100# approx.
PRIOR SVC:Wine polishing
COMMENTS:2" S.S. plumbing. Mounted in C.S. frame on casters. Designed to 'polish' a liquid, removing very small particles in small %age quantities from liquid. i.e. wine, water, beer etc
