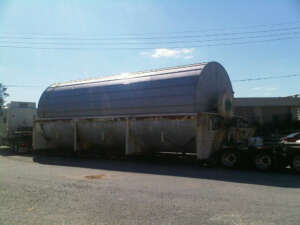

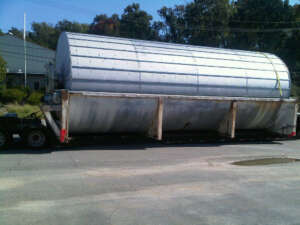

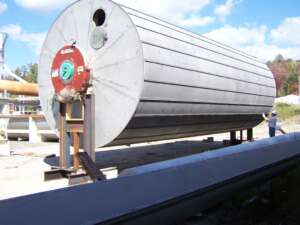

1270818 - FILTER, ROTY VAC, 13'6'' X 36', 316LSS, EIMCO, 1500SF, BELT [5]

  • MFD.BY:Eimco, SLC, UT
  • TYPE:Rotary vacuum drum filter. Horizontal cylindrical perforated drum rotating in a trough, partially submerged in the liquid slurry to be filtered. Drum face covered with drainage grids, which support a filter media, through which the mother liquor is evacua
  • DIAMETER-DRUM:13'6''
  • LENGTH-DRUM:36'
  • APPROX. FILTER AREA:1527 total, 1500 sq.ft. effective, approx.
  • MAT'L CONSTRN-DRUM FACE:316LSS
  • MAT'L CONSTRN-DRUM ENDS:316LSS
  • MAT'L CONSTRN-TROUGH:316LSS
  • MAT'L CONSTRN-RAKE AGIT:NA
  • ENCLOSURE:NA
  • VACUUM SYSTEM:NA Available extra
  • FILTRATE SYSTEM:NA Available extra
  • DRIVEN BY:7.5 HP approx
  • DRUM RPM:Baton Adjusto-Speed drive, via Falk 100:1 gear reducer approx. 1 rpm
  • DISCHARGE MECHANISM:Roll Discharge with 316L SS Roll Assembly. Can be converted to Belt or knife discharge.

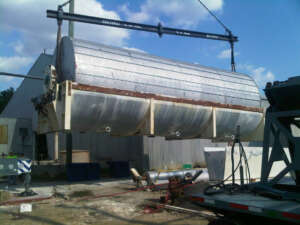

  • COMMENTS:37-1/2% submergence approx. Still installed. No grids. No agitator. Weight 55000# less roll discharge. 18000# trough only, 37000# drum. 17"dia end valves.
  • SHIPPING SIZE-W X H X L:15'W X 14'H X 40'L
  • APPROX. WEIGHT-LBS:60000#
