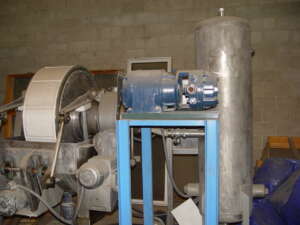

1269902 - FILTER, ROTY VAC, 3' X 1', SS, D.OLIVER, 9SF, PRECOAT [1]

  • MFD.BY:Dorr Oliver
  • DATE MFD:1980 approx.
  • TYPE:Rotary vacuum drum filter. Horizontal cylindrical perforated drum rotating in a trough, partially submerged in the liquid slurry to be filtered. Drum face covered with drainage grids, which support a filter media, through which the mother liquor is evacua
  • MODEL:3 X 1
  • DIAMETER-DRUM:36''
  • LENGTH-DRUM:12''
  • APPROX. FILTER AREA:9 SF
  • MAT'L CONSTRN-DRUM FACE:SS
  • MAT'L CONSTRN-DRUM ENDS:SS
  • MAT'L CONSTRN-TROUGH:SS
  • MAT'L CONSTRN-RAKE AGIT:SS
  • ENCLOSURE:NA
  • VACUUM SYSTEM:38cfm @ 25"hg. Nash Mdl. MD-74 liq.ring w/3HP direct coupled motor. 75 gall. SS Vac. Receiver
  • FILTRATE SYSTEM:75 gall. Vac SS. Receiver w/ filtrate pump, 1/2HP, XP.
  • DRIVEN BY:2HP V-speed, approx.
  • DISCHARGE MECHANISM:Precoat. Advancing Knife, ¼HP
  • PRIOR SVC:Refurbished, stored since
  • COMMENTS:Complete with vacuum and filtrate pumps, receiver, skid mounted
  • SHIPPING SIZE-W X H X L:4'W X 6'H X 7'L
  • APPROX. WEIGHT-LBS:4000#
