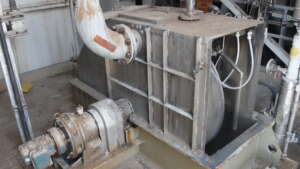

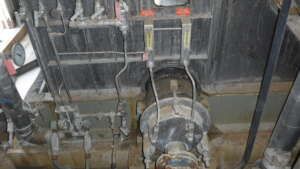

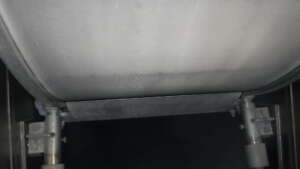

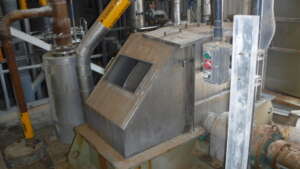

TYPE:Rotary vacuum drum filter. Horizontal cylindrical perforated drum rotating in a trough, top weir fed. Drum face covered with drainage grids, which support a filter media, through which the mother liquor is evacuated via a vacuum system connected to the in
MODEL:Saltcake Filter
DIAMETER-DRUM:4'
LENGTH-DRUM:18''
APPROX. FILTER AREA:18SF
MAT'L CONSTRN-DRUM FACE:Titanium
MAT'L CONSTRN-DRUM ENDS:Titanium
MAT'L CONSTRN-TROUGH:Titanium
MAT'L CONSTRN-RAKE AGIT:NA
ENCLOSURE:Dust/Vapor housing.
VACUUM SYSTEM:NA
FILTRATE SYSTEM:NA
DRIVEN BY:2HP approx, gearmotor direct coupled
DRUM RPM:0-10 approx.
DISCHARGE MECHANISM:Knife.
PRIOR SVC:Saltcake
COMMENTS:No agitator. Weir feed. Water wash nozzles over upper drum outside weir box. Knife discharge on underside of drum.
