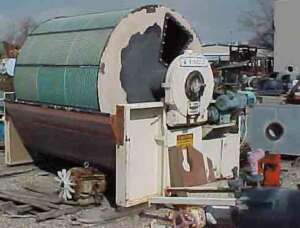

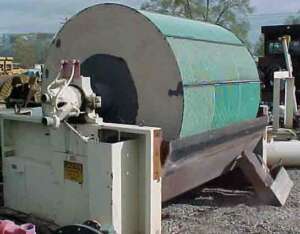

1268570 - FILTER, ROTY VAC, 6’ X 6', CS, EIMCO, 113SF, BELT [1]
MFD.BY:Eimco
DATE MFD:1970 approx.
TYPE:Rotary vacuum drum filter. Horizontal cylindrical perforated drum rotating in a trough, partially submerged in the liquid slurry to be filtered. Drum face covered with drainage grids, which support a filter media, through which the mother liquor is evacua
DIAMETER-DRUM:6'
LENGTH-DRUM:6'
APPROX. FILTER AREA:113 SF
MAT'L CONSTRN-DRUM FACE:CS
MAT'L CONSTRN-DRUM ENDS:CS
MAT'L CONSTRN-TROUGH:CS
MAT'L CONSTRN-RAKE AGIT:CS
VACUUM SYSTEM:Y
FILTRATE SYSTEM:Y
DRIVEN BY:¾HP Approx.
DISCHARGE MECHANISM:Belt w/take off roller
COMMENTS:37½% submergence.nPan agitator driven by 3/4HP gearmotor, 3/60/230-460V.nIncludes some valves & piping.
