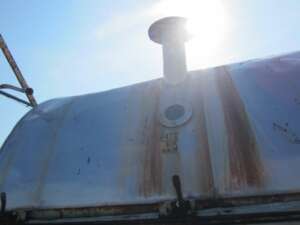

1271105 - FLAKER, DRUM, 48'' X 48'', 50SF, SS, TROUGH FEED [1]

  • MFD.BY:Goslin Birmingham
  • DATE MFD:1966
  • TYPE:Horizontal rotary single drum flaker roll. Smooth surfaced cored & cooled drum is rotated, partially submerged in a trough. The product coats the drum surface, is continuously solidified and then flaked off via a fixed "doctor-knife" positioned close to
  • MODEL:Single drum.
  • DIAMETER-DRUM:4'
  • LENGTH-DRUM:4'
  • MAT'L CONSTRN-DRUM:SS
  • MAT'L CONSTRN-TROUGH:SS
  • SURFACE AREA:50 SF approx.
  • DISCHARGE:Adjustable knife.
  • ENCLOSURE:Yes. Vapor tight.
  • DRIVEN BY:3HP, Reeves size 333-VIE-18 varispeed, 3/60/220-440V. XP.
  • DRIVEN VIA:Bullgear/pinion, reducer varispeed. 11.5-45 rpm output.
  • DRUM RPM:1-4 rpm drum speed approx.
  • SHIPPING SIZE-W X H X L:5'W X 6'H X 8'L
  • APPROX. WEIGHT-LBS:4000#
