TYPE:Rotary Hearth type furnace. Multiple circular hearths are assembled one over the other about a common, vertical axis, center shaft, inside a refractory lined outer steel shell. The center shaft is hollow and cooled and driven from the bottom of the fur
DIAMETER-OD SHELL:10'
DIAMETER-ID SHELL:9' ID
NO. HEARTHS:4
RABBLE ARMS:Air cooled and center shaft.
COMBUSTION-BURNERS:Gas. Oil available, 60-80gph.
REFRACTORY:Refractory lined.
DRIVEN BY :10hp, 3/60/460v.
RPM-RAKE ARMS:Variable
PRIOR SERVICE :Calcium Carbonate

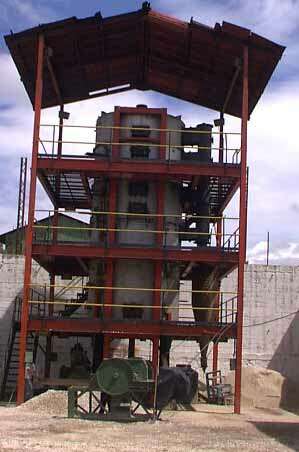

COMMENTS:Still installed. Steel support structure and multi - deck surrounding mezzanine, stand alone. Control panel. Available extra: 18000cfm Ducon wet scrubber. 314sf area.
