- MFD.BY:Dynamatic, [DSI] Sturtevant, WI.
- DATE MFD:2000 approx.

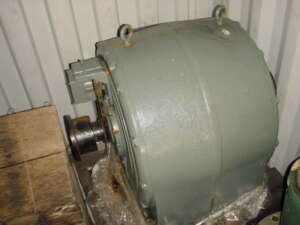

- TYPE:Eddy current clutch-drive, stepless adjustable speed with full load torque continuously available over wide speed range. Horizontal, foot mounted, stationary field, Liquid cooled, externally lubricated anti-friction bearings. Torque transmitted by electro
- MODEL:Dynamatic, WC-2212 or WC2213 [tbc]
- RATING-HP:1000HP
- GEAR RATIO:Variable Speed
- REDUCTION:Single
- STYLE:In-line shafts Horizontal.
- RPM-INPUT:1800 normal max, 880-1200rpm alternate.
- SHAFT-INPUT:4" dia. X 5" long approx. keyed. Horizontal.
- SHAFT(S)-OUTPUT:4" dia. X 5" long approx. keyed. Horizontal.
- DIMENSIONS-CL/BASE:16" approx.
- PRIOR SVC:Unused. Spare for 600HP reactor vessel agitator drive that required Variable output speed.
- COMMENTS:Stored indoors, periodically rotated. Rated from 2450 Ft/Lbs torque at 40RPM slip speed output to 4600Ft/Lbs torque at 1750 RPM slip speed output. Requires 100GPM 90Deg F cooling water circuit and 9 GPM bypass water. Uses DSI Controller size 7, 45V DC.
- SHIPPING SIZE-W X H X L:3'W X 2'H X 3'L
- APPROX. WEIGHT-LBS:4500#
- QUANTITY:1
