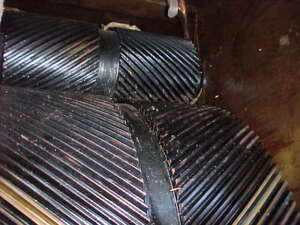

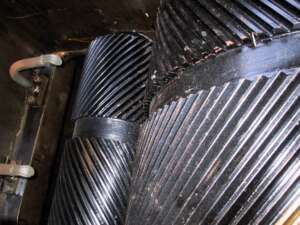

1268960 - GEAR BOX, REDUCER, 13400HP, 6336RPM IN, 1800RPM OUT, 3.52:1, GE [1]
MFD.BY:General Electric
TYPE:Gear reducer.
MODEL:S-238
RATING-HP:13400HP, 10000KW
RATING-S.F.:1.2
GEAR RATIO:3.52:1
REDUCTION:Single
STYLE:Parallel shaft. Horizontal. Orientation: looking at driven/input shaft coupling from driver position the output shaft is to the right and pointing away.
RPM-INPUT:6336
SHAFT-INPUT:4.5" dia. x approx. 5-1/2" long keyed 1-1/4" X 5/8". Horizontal.
SHAFT(S)-OUTPUT:7" dia. X approx. 8" long, keyed 1-3/4" wide X 7/8" deep. Horizontal.
DIMENSIONS-CL/BASE:24"
DIMENSIONS-CL/CL:22" horizontal. Distance over shaft ends 60". [Input to C/L 29". Output to C/L 31"]
COMMENTS:Stored indoors, periodically rotated. Gear to be reconditioned w/all parts in good operating condition and including shaft driven lube oil pump, cooler, filter, relief valve and piping.
