1272242 - GENERATOR, STM TURBINE, 116KW, 3/60/460V, 125#IN, 35# EXH, ELLIOTT [1]

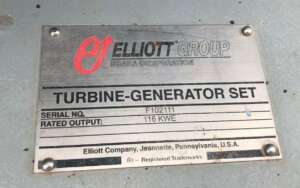

  • MFD.BY:Elliott
  • DATE MFD:2011

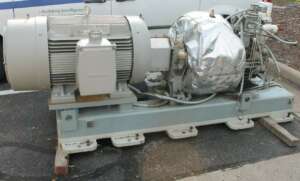

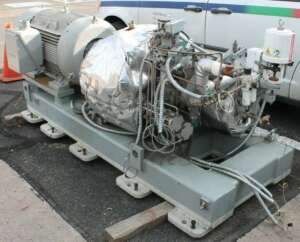

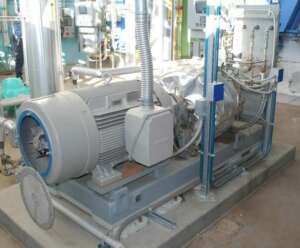

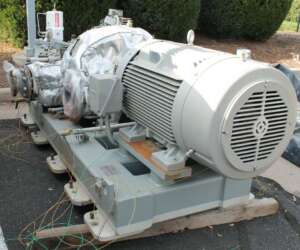

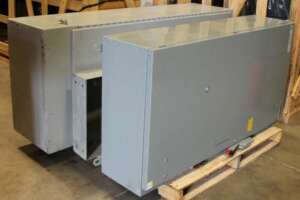

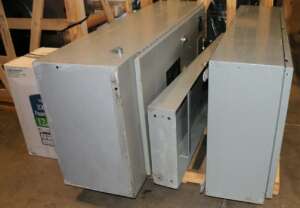

  • TYPE:Steam turbine powered electric Generator. Skid mounted Non-condensing Steam Turbine direct coupled to an Induction electric Generator with remote control panels.
  • MODEL:BYRPE III
  • RATED-KW/MW:116KW Rated load @ 3600RPM. 155HP [Range 20-122KW]. Generator SD100 MEMA Premium Efficiency unit.
  • RATED-CYCLES/HZ:60Hz, 3phase.
  • RATED-VOLTAGE(S):460V TEFC
  • HOURS:Low
  • TURBINE-TYPE:Non Condensing.. Synthetic oil, non water cooled.
  • EXTRACTION:NA
  • EXHAUST STEAM:35psig Connections RH inlet & exhaust.
  • TURBINE-RPM:3600rpm rated. 4004rpm overspeed trip, 7300rpm first critical.
  • PRIOR SERVICE:1 year approx.
  • COMMENTS:Skid mounted. Electro pneumatic Erwin Governor. Dual pneumatic automated handvalves for part load operation. Local digital rpm panel. Manual and electric overspeed protection trips.High temp insulation kit. Drawings and manuals available. 3 Guage panel ba
  • SHIPPING SIZE-W X H X L:6'W X 5'H X 14'L
  • APPROX. WEIGHT-LBS:5500#
  • QUANTITY:1
