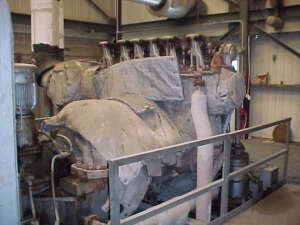

1268270 - GENERATOR, STM TURBINE, 13.45MW, 3PH, 60CY, 13.8KV, 715#IN, 200# EXH, STANDBY [1]

  • MFD.BY:Turbodyne, Wellsville, NY(Turbine) & Electromotive Machinery, Minn.MN(Generator)
  • DATE MFD:1978 Approx
  • TYPE:Synchronous Generator, Steam Turbine powered.
  • RATED-KW/MW:13.45MW Rated load @ 3600RPM. Fr. 1T07
  • RATED-CYCLES/HZ:60Hz, 3phase
  • RATED-VOLTAGE(S):13.8KV , approx. 0.86% power factor. 662Amp. 15.824MVA Temp rise; Arm 70deg F, Field 85 deg F. Field volts 60, 6 amps.
  • TURBINE-TYPE:Non-Condensing.
  • EXHAUST STEAM:200psig exhaust.
  • TURBINE-RPM:3600 (2450rpm 1st critical)
  • PRIOR SERVICE:Running, Plant standby power

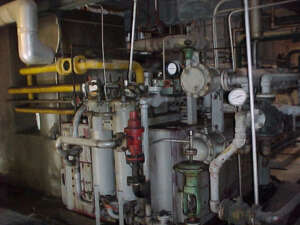

  • COMMENTS:Installed indoors. Currently in service on slow rotation by electric motor & under steam w/lube circuit operating. Complete facility w/ condenser & pumps. Includes exciter. Controls, lubrication system etc. Switchgear, Transformer and freestanding steel b
  • SHIPPING SIZE-W X H X L:10'W X 10'H X 30'L
  • APPROX. WEIGHT-LBS:150000#
  • QUANTITY:1
