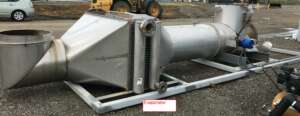

TYPE- ENCLOSURE:Organic Rankin Cycle waste heat-to-electricity generator.nWaste Heat gases pass over a Heat Recovery exchanger coil, heating chilled water in a closed loop. Heated water exchanges heat with R245fa Refrigerant liquid in a separate closed loop, via an Eco
MODEL:WHG125. [GE/Calnetix Clean Cycle CC125 ORC]
HORSEPOWER:NA
RPM:26500
ORIENTATION:Horizontal, modular
MOUNTED:Frames.
FRAME;NA
PHASE:3
VOLTS:400V @ 50CY or 480V @ 60CY
AC/DC:AC
SAFETY FACTOR:NA
AMPS:145FLA @ 480V, 175FLA @ 400V
PRIOR SERVICE:Limited Intermittent use, University engineering project using Hot Gas from CR800 Microturbine generator.

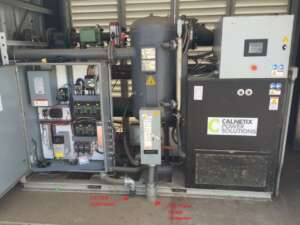

COMMENTS:Generates 125KW from Waste Heat rate 892KW / 3.05MM BTU/HR @ 258Deg F min. Full Gross load 145A, 3/60/480V or 175A, 3/50/400V. Skid mounted system, 3 modules, interconnecting-.n1. ORC Waste Heat Generator, includes Integrated Power Module: High speed tur
