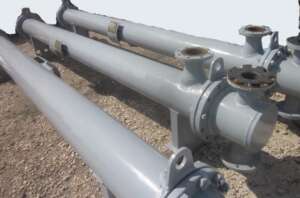

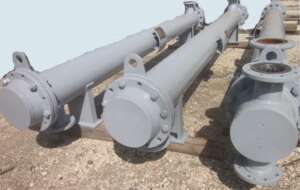

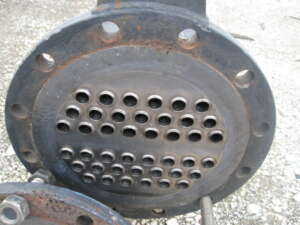

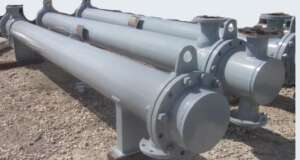

MFD.BY: Fansteel Inc DATE MFD: 1979 TYPE: Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes. TEMA TYPE: BEM Size 10-148 ORIENTATION: Horizontal AREA-BARE TUBE: 101SF AREA-EXTENDED: 101SF TUBESHEETS: Tantalum 63M faced CS SA-105, fixed. 10" 150# RF BLD. BAFFLES: 20%Glass VTFE. 20 @ 7-7/8"cut x 3/16"tk x 10-3/16"dia on 6.2" spacing. 4 @ 1/4" dia CS tie rods. HEAD-FRONT: Tantalum 63M lined CS 'B' type removable flat bonnet head with Channel. SHELL DETAILS: 10”std pipe x 12'4" t.s-t.s, 13'9'' o/all, 2-pass TUBE DETAILS: 42 @ 3/4” OD x 0.015'' x 12'5-1/8" long, 1-pass. Tri pitch. Cu Ferrule seating to tubesheet, 1-5/8" long.. MAT'L CONSTRN-SHELL: CS MAT'L CONSTRN-TUBES: Tantalum 63M PRESSURE-SHELL: 125# DP @ 400°F, Hyd 187# ASME PRESSURE-TUBES: 60# DP @ 150°F, Hyd 90# ASME CONNECTIONS-SHELL/TUBE: Shell: 4”/4" with impingement baffle. Tubes: 4”in/4"out. 150# RFWN PRIOR SVC: Anolyte, Catholyte, Steam COMMENTS: 2 Saddles supports,10'spacing. SHIPPING SIZE-W X H X L: 1'W X 2'H X 13'L APPROX. WEIGHT-LBS: 1142#
