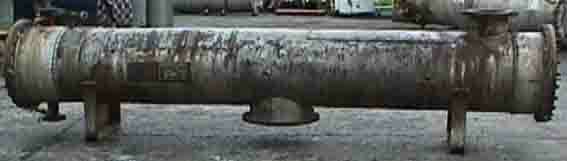

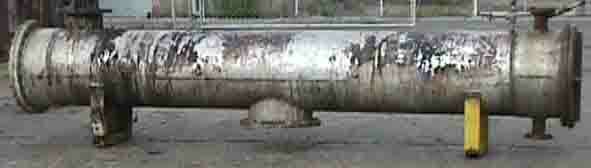

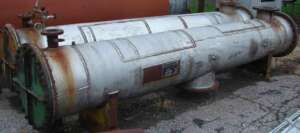

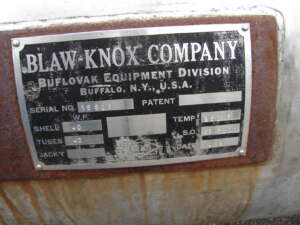

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:NEN. 24-144 approx.
ORIENTATION:Horizontal w/2 saddles
AREA-BARE TUBE:1100SF
AREA-EXTENDED:1100SF
TUBESHEETS:SS
BAFFLES:SS
HEAD-FRONT:SS
SHELL DETAILS:24" OD. X 144"t.s.-t.s. Split flow? 1-Pass.
TUBE DETAILS:~465 @ 3/4"OD X 144" long straight. 2-Pass
MAT'L CONSTRN-SHELL:SS
MAT'L CONSTRN-TUBES:SS
PRESSURE-SHELL:40# @ 250°F, MAWP.
PRESSURE-TUBES:40# @ 250°F, MAWP.

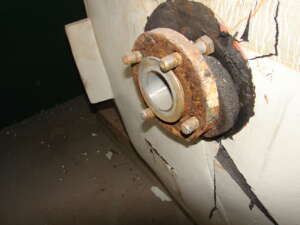

CONNECTIONS-SHELL/TUBE:Shell: 10"& 3" in/18" out Tubes: 4" in/ 3" out
