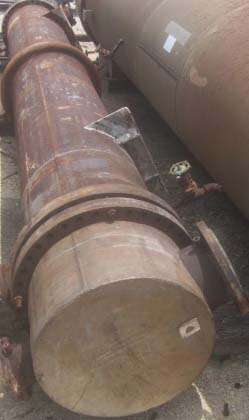

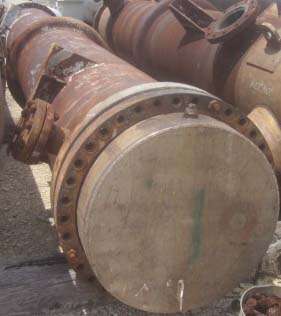

1271968 - HEAT EX, 1120SF, CS-316SS-316SS [S-T-H], 200#-FV [S-T], BEM, 1P-12P, HORIZ [1]

  • MFD.BY:Camden Iron Works
  • DATE MFD:1967
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:BEM Size 28-216
  • ORIENTATION:Horizontal support saddles on 12' C/L.
  • AREA-BARE TUBE:1120SF
  • AREA-EXTENDED:1120SF

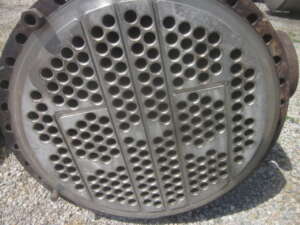

  • TUBESHEETS:316SS Fixed. 30"OD x 1.25"tk
  • BAFFLES:316SS 8 @ 3/8"thick, 20% horizontal cut. 6 @ 1/2" tie rods, CS.
  • HEAD-FRONT:316SS TEMA Type B Removable bonnet type, 28"OD x 3/16"tk w/5/8"flat end.
  • SHELL DETAILS:28"OD X 5/16"tk x 18' ts-ts, mid point Expansion joint, 1-Pass.
  • TUBE DETAILS:192 @ 1.25" OD x 14Ga x 18'L, Straight. 1.5" tri pitch, 12-Pass.
  • MAT'L CONSTRN-SHELL:CS
  • MAT'L CONSTRN-TUBES:316SS
  • PRESSURE-SHELL:200# @ 600 Deg F, Hyd 300#. ASME NBd
  • PRESSURE-TUBES:FV @ 500 Deg F, Hyd 50#. ASME NBd. Neck nozzles 150# @ 600 Deg F.
  • CONNECTIONS-SHELL/TUBE:Shell- 4" in/ 4"out, 2"vent, 3/4"drain. Tubes- 8" in/ 4"out, jacketed neck nozzles w/1/2" couplings.
  • PRIOR SVC:Solvent Evaporator Feed Preheater [Duty 4.5MM Btu/Hr, Steam on shell 5000PPH, Polymer/Cyclohexane Tubes 35000PPH]
  • COMMENTS:Tubes welded to tubesheets. Channel dividers 3/8" thick.
  • SHIPPING SIZE-W X H X L:3'W X 3'H X 20'L
  • APPROX. WEIGHT-LBS:8400#
