TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEU Size 30-96
ORIENTATION:Vertical with 2 support lugs
AREA-BARE TUBE:1165SF
AREA-EXTENDED:1165SF
TUBESHEETS:316LSS SAN
BAFFLES:CS
HEAD-FRONT:316LSS SAN
SHELL DETAILS:30" OD x 10't.s.-t.s. approx. 1 Pass.

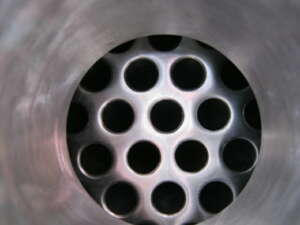

TUBE DETAILS:378 @ 3/4" OD X 16G X 8' long straight. 15/15" Tri pitch. 2-Pass
MAT'L CONSTRN-SHELL:CS
MAT'L CONSTRN-TUBES:316LSS SAN
PRESSURE-SHELL:FV150# @ 375°F, MAWP. ASME, N.Bd.
PRESSURE-TUBES:FV150# @ 375°F, MAWP. ASME, N.Bd.
CONNECTIONS-SHELL/TUBE:Shell: 3" in/out flanged. Tubes: 3" in/out Tri clamp sanitary
PRIOR SVC:UNUSED. Cooler service

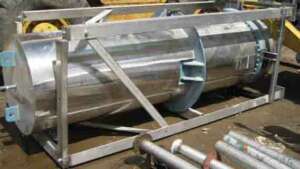

COMMENTS:Sanitary service tube side, surface finish 20-RA in contact with product.. Removable bundle. Mdl. WCV-2P-96BS. Externally insulated and SS sheathed shell. Mounted with tube connections vertical-down, in CS support frame on legs with foot pads.
