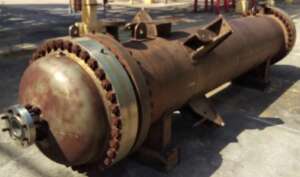

MFD.BY: Chemineer DATE MFD: 1986 TYPE: Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes. TEMA TYPE: BEM Size 29-155 ORIENTATION: Horizontal support saddles [2]. Also Vertical 4 lugs support AREA-BARE TUBE: 1250SF AREA-EXTENDED: 1377SF TUBESHEETS: 304SS Fixed. 37.5"OD x 3.38"tk BAFFLES: 304SS 4 @ 3/8"thick, 20% horizontal cut. 6 tie rods 1/2", 304SS. HEAD-FRONT: 304SS TEMA Type B Removable bonnet type, 0.875"tk elliptical. Flange 4.75" tk. 36 @ CS fasteners, 1-1/4"UNC studs x 16"long approx. SHELL DETAILS: 2'9"OD X 0.625"tk x 12'11.5'' ts-ts, 1 Pass. TUBE DETAILS: 442 @ 1" dia. X 16Ga x 13' L Straight, tri pitch, 1 Pass. Spiral swirl strips installed in each tube. MAT'L CONSTRN-SHELL: 304SS MAT'L CONSTRN-TUBES: 304SS PRESSURE-SHELL: 420# @ -20/500 Deg F ASME Hyd 950# PRESSURE-TUBES: 800# @ -20/500 Deg F ASME Hyd 1420# CONNECTIONS-SHELL/TUBE: Shell- 3" in/ 2"out, 2"vent, 3/4"drain. Tubes- 4" in/out. all 600#RFWN PRIOR SVC: Solvent Evaporator Feed Preheater [Duty 4.5MM Btu/Hr, Steam on shell 5000PPH, Polymer/Cyclohexane Tubes 35000PPH] COMMENTS: Lifting lugs on each head, 1356#wt. 2 lifting lugs on shell. SHIPPING SIZE-W X H X L: 4'W X 4'H X 17'L APPROX. WEIGHT-LBS: 12900#
