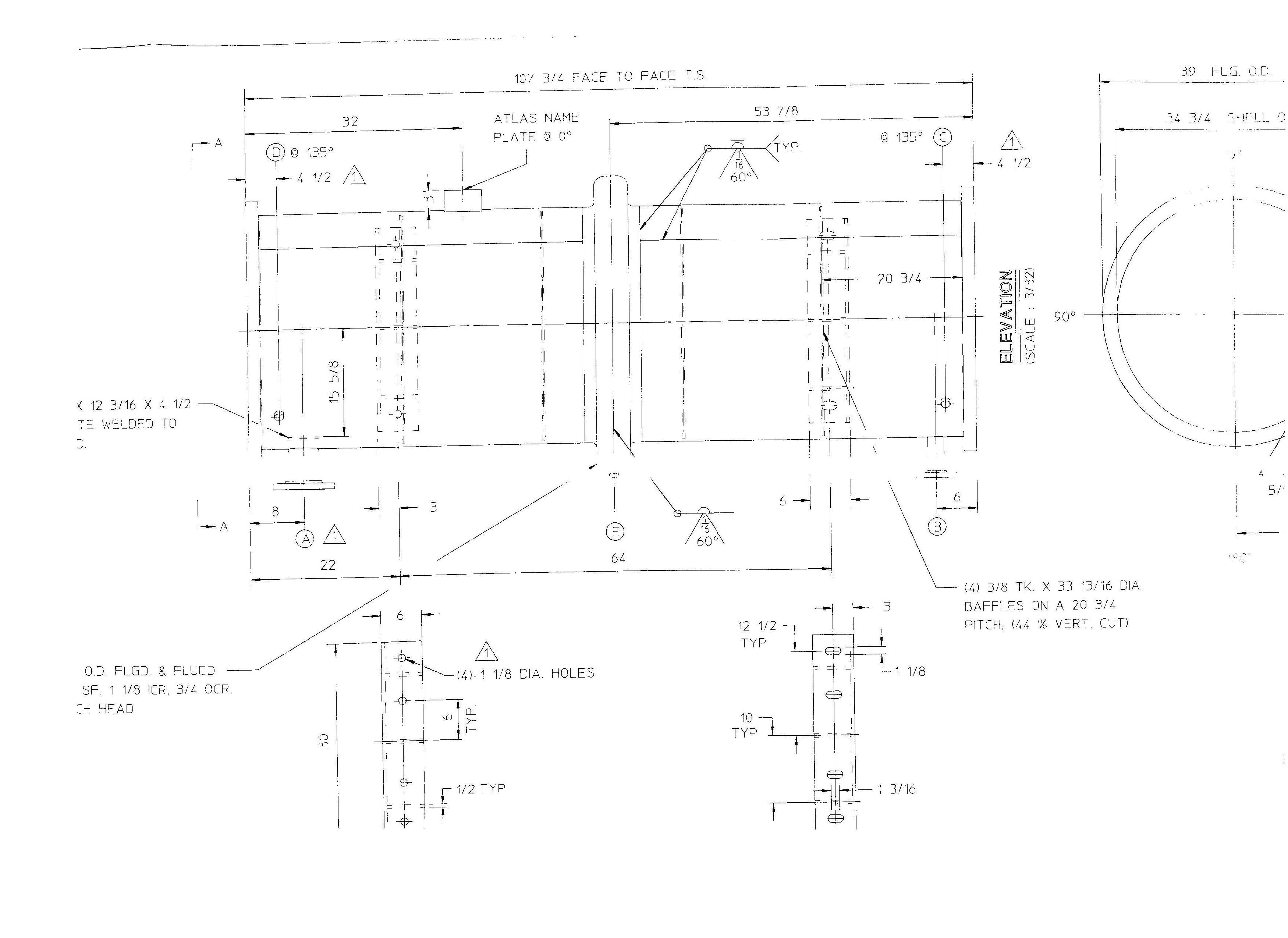

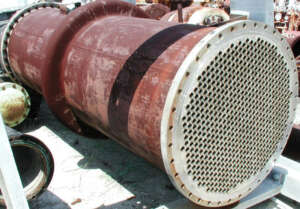

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEM Size 34-108
ORIENTATION:Vertical. 2 lugs support
AREA-BARE TUBE:1377SF
AREA-EXTENDED:1377SF
TUBESHEETS:316LSS 1-13/16"
BAFFLES:CS 4 @ 3/8"thick on 20-3/8" pitch, 44% vertical cut
