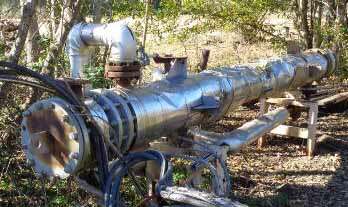

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:AEP Size 10-144
ORIENTATION:Horizontal/ Vertical. Saddles and side pads supports
AREA-BARE TUBE:150SF
AREA-EXTENDED:150SF

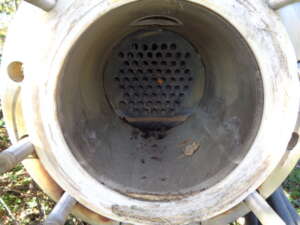

TUBESHEETS:304LSS
BAFFLES:CS
HEAD-FRONT:304LSS 'A' type removable channel and cover
SHELL DETAILS:10” OD x 12' t.s-t.s, 14 o/all, 1-pass
TUBE DETAILS:65 @ 3/4” OD x 16Ga x 12' long, 1-pass. 3/4" Tri pitch
