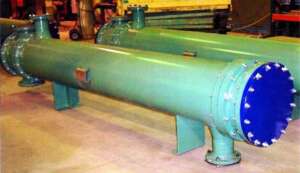

1269443 - HEAT EX, 1624SF, CS-316LSS-CS [S-T-H], FV150#-FV150# [S-T], AEW, HORIZ [2]

  • MFD.BY:RND Machine, NY
  • DATE MFD:2003
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:AEW Size 19-132
  • ORIENTATION:Horizontal, 2 saddles.
  • AREA-BARE TUBE:1624SF
  • AREA-EXTENDED:1624SF
  • TUBESHEETS:316LSS Floating rear. Front 20"OD X 1.25" thick.
  • BAFFLES:CS 10 @ 11-1/2" spaced, 25% horiz. Cut
  • HEAD-FRONT:CS Removable channel & cover, packed floating head.
  • SHELL DETAILS:20"OD X 10'8"L
  • TUBE DETAILS:302 @ 3/4"OD X 0.049" X 132"L, 0.9375" triangular pitch
  • MAT'L CONSTRN-SHELL:CS
  • MAT'L CONSTRN-TUBES:316LSS
  • PRESSURE-SHELL:FV150# DP, -20/+200°F, Hyd 225# ASME NB
  • PRESSURE-TUBES:FV150# DP, -20/+200°F, Hyd 225# ASME NB
  • CONNECTIONS-SHELL/TUBE:6"in/out shell 8"in/out tube
  • PRIOR SVC:UNUSED Lube oil cooler
  • SHIPPING SIZE-W X H X L:2'W X 2'H X 13'L
  • APPROX. WEIGHT-LBS:3700#
