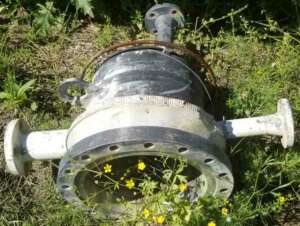

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEM
ORIENTATION:Horizontal. 2 saddle supports.
AREA-BARE TUBE:195 SF
AREA-EXTENDED:195 SF
TUBESHEETS:SS 1¼" thick, fixed.
BAFFLES:SS
HEAD-FRONT:SS TEMA type "B"
SHELL DETAILS:12"Dia. X 12'L, TEMA type "E". XP Joint, 1-Pass
TUBE DETAILS:64 @ 1"OD X 12' Long, 1-Pass, Tri-Pitch
