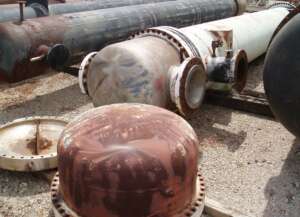

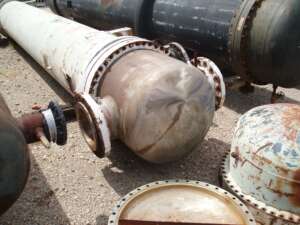

1269339 - HEAT EX, 2418SF, CS-304LSS-CS [S-T-H], 300#-300# [S-T], BES, 1P-2P, HORIZ [1]

  • MFD.BY:Southern Heat Exchanger
  • DATE MFD:1976
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:BES
  • ORIENTATION:Horiz. 2 Saddles
  • AREA-BARE TUBE:2418SF
  • AREA-EXTENDED:2418SF
  • TUBESHEETS:304SS
  • BAFFLES:CS
  • HEAD-FRONT:304SS "B"
  • SHELL DETAILS:35" X 20' Long approx. 1-Pass.
  • TUBE DETAILS:616 @ 3/4" X 16ga X 20' Long Tubes, 2 pass. Removable bundle
  • MAT'L CONSTRN-SHELL:CS
  • MAT'L CONSTRN-TUBES:304LSS
  • PRESSURE-SHELL:300# @ 250° F, ASME
  • PRESSURE-TUBES:300# @ 250° F
  • CONNECTIONS-SHELL/TUBE:Shell: 10"/10" Tubes: 12"/12"
  • COMMENTS:No plugs
  • SHIPPING SIZE-W X H X L:3'W X 5'H X 24'L
  • APPROX. WEIGHT-LBS:15000#
