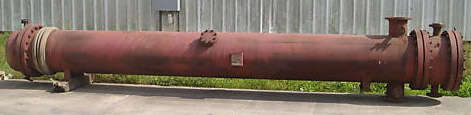

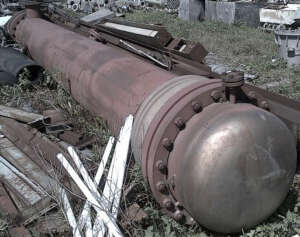

1271055 - HEAT EX, 2850SF, CS-TI-TI [S-T-H], 150#-75# [S-T], AEM, 1P-2P, HORIZ [1]

  • MFD.BY:Piersol Pine
  • DATE MFD:1977
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:AEM
  • ORIENTATION:Horiz., on 2 saddles.
  • AREA-BARE TUBE:2850SF
  • TUBESHEETS:Fixed, Ti clad. Tubes rolled & welded to tubesheets, on 15/16" pitch approx.
  • BAFFLES:CS
  • HEAD-FRONT:Titanium. "A", channel & removable cover. CS flanges.
  • SHELL DETAILS:30" OD x 22'ts-ts, bellows type alloy expansion joint at rear head by tubesheet. 2-pass. Approx.
  • TUBE DETAILS:648 @ 3/4" OD x 22' lg., 2-pass. Approx.
  • MAT'L CONSTRN-SHELL:CS
  • MAT'L CONSTRN-TUBES:Titanium
  • PRESSURE-SHELL:150# @ 450Deg F min. approx. ASME.
  • PRESSURE-TUBES:75# @ 300Deg F min. approx. ASME.
  • CONNECTIONS-SHELL/TUBE:Shell: 10" in/out, 150# flanges. Tubes: 4" in/out, 300# slip on flanges.

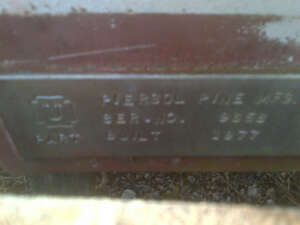

  • COMMENTS:Pressures Nameplate missing. ASME stamp on secondary mfr nameplate with S/N.
  • SHIPPING SIZE-W X H X L:3'W X 4'H X 30'L
  • APPROX. WEIGHT-LBS:12000#
