TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEM
ORIENTATION:Horiz
AREA-BARE TUBE:3002SF
AREA-EXTENDED:3002SF
TUBESHEETS:CS
BAFFLES:CS [11 @ 19-11/16" spaced]
HEAD-FRONT:CS
SHELL DETAILS:3'O.D. X 20'L, 23'o/all, Expansion joint. 1-pass.

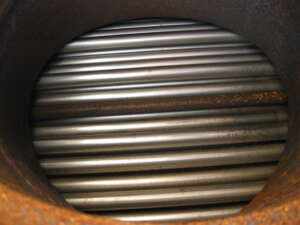

TUBE DETAILS:574 @ 1" O.D. X 16GA X 20' long, 1.25"TRI pitch. 4-pass.
MAT'L CONSTRN-SHELL:CS
MAT'L CONSTRN-TUBES:304SS
PRESSURE-SHELL:FV135# @ 500°F. Hyd 203#. ASME. N.Bd.
