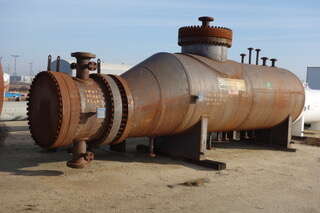

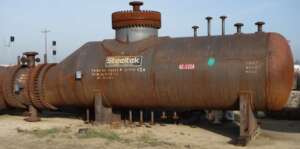

1271943 - HEAT EX, 3117SF, CS-410SS-CR.MO [S-T-H], 730#-737# [S-T], AKU, 1P-8P, HORIZ [1]

  • MFD.BY:Steeltek OK
  • DATE MFD:2007
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:TEMA 41/66-216 AKU
  • ORIENTATION:Horiz. 2 saddles
  • AREA-BARE TUBE:3117SF
  • AREA-EXTENDED:3117SF
  • TUBESHEETS:CS. SA-182F5. 42"Dia x 5.625" thick
  • BAFFLES:CS. SA-36
  • HEAD-FRONT:CR MO. SA-387-5CL2. Channel 41"OD X 1/2" Tk. X 1'10-3/16"o/all.
  • SHELL DETAILS:69"OD/66''ID X 1.5"Tk X 20'10''. 1-pass.
  • TUBE DETAILS:321 @ 1" OD X 0.109" X 18' long. 1-1/4" Sq.Pitch. 8-pass.
  • MAT'L CONSTRN-SHELL:CS. SA-516-70N
  • MAT'L CONSTRN-TUBES:410SS SA-268TP410 Welded
  • PRESSURE-SHELL:730#MAWP [700#DP] @ 550°F. Hyd. 1095# ASME. N.Bd.
  • PRESSURE-TUBES:737#MAWP [720#DP] @ 720°F. Hyd. 959# ASME. N.Bd.
  • CONNECTIONS-SHELL/TUBE:Shell: 3"in/42"/6"out 2"[11], 1"[2] Tube: 8 in/8"out. 600#RFWN. 1-1/2"[2], 1"[2] 600# NPT
  • PRIOR SVC:UNUSED. Main Column Bottoms Steam Generator
  • COMMENTS:Documentation. In storage.
  • SHIPPING SIZE-W X H X L:6'6''W X 10'3''H X 25'L
  • APPROX. WEIGHT-LBS:50070#
