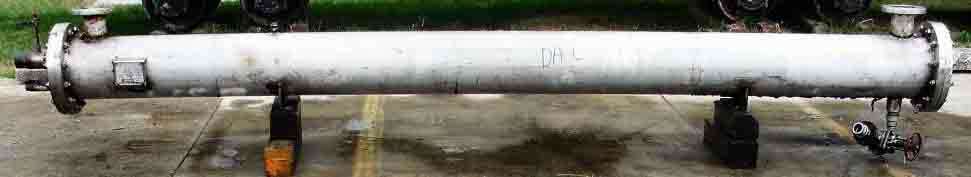

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEM
ORIENTATION:Horizontal, 2 saddles.
AREA-BARE TUBE:370SF
TUBESHEETS:304SS, Fixed
HEAD-FRONT:304SS
SHELL DETAILS:12.75"OD. x 14'8-5/8'' ts-ts, Size 12 X 176, 1-Pass.
TUBE DETAILS:154 @ 3/4"OD x 16Ga x 14'8" L, 2-Pass.
MAT'L CONSTRN-SHELL:304SS
MAT'L CONSTRN-TUBES:304SS
PRESSURE-SHELL:100#MAWP @ -20/200°F. ASME, N.Bd.
PRESSURE-TUBES:250#MAWP @ -20/200°F. ASME, N.Bd.

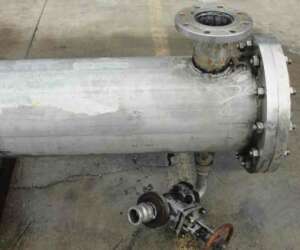

CONNECTIONS-SHELL/TUBE:Shell: 4" In/Out RFSO flanged, 1"NPT, 3/4"NPT. Tubes: 1-1/4" In/Out [Requiires new flanges, nozzle necks only, cold cut from last installation]
