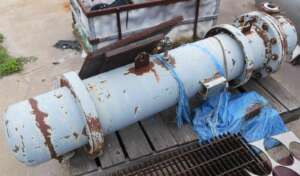

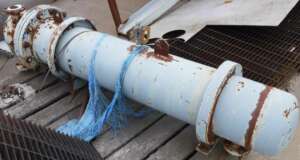

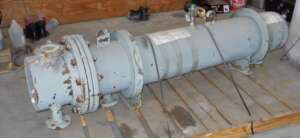

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEU
ORIENTATION:Horiz on 2 saddles
AREA-BARE TUBE:60 SF
AREA-EXTENDED:60 SF
TUBESHEETS:CS, fixed.
BAFFLES:CS
HEAD-FRONT:CS front head removable bonnet.
SHELL DETAILS:12.75” OD x 6'L, 1 pass
TUBE DETAILS:60 @ 3/4” OD x 5’ long, approx. 4 pass. Tri pitch
MAT'L CONSTRN-SHELL:CS
MAT'L CONSTRN-TUBES:316LSS

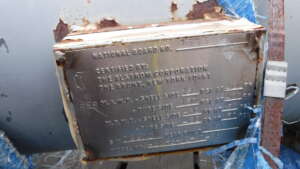

PRESSURE-SHELL:150# @ -20/+400 Deg F Hyd 225# ASME NBd.
PRESSURE-TUBES:150# @ -20/+400 Deg F Hyd 225# ASME NBd.
