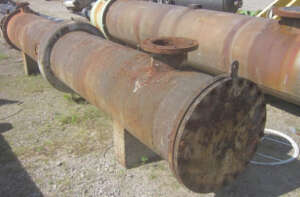

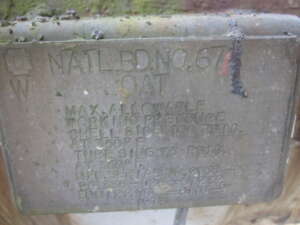

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:CEN Size 22-144
ORIENTATION:Horizontal 2 Saddles
AREA-BARE TUBE:670SF
TUBESHEETS:316LSS Fixed. 1"tk
BAFFLES:CS 12 @ 10'' spacing
HEAD-FRONT:316LSS TEMA type ''C''
SHELL DETAILS:22"OD X 12'Long, 1-pass. XP Joint
TUBE DETAILS:284 @ 3/4"OD X 16ga. X 12'L straight, 6pass. 15/16" Tri.pitch
