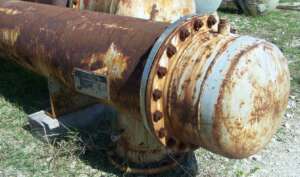

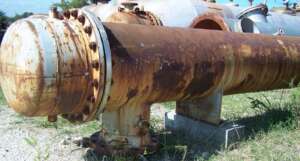

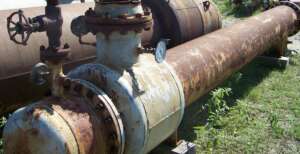

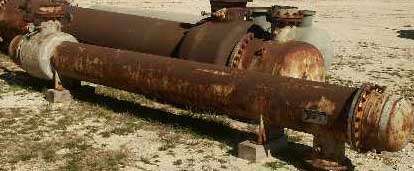

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:BEM Size 17-192
ORIENTATION:Horizontal 2 Saddles
AREA-BARE TUBE:690 SF
AREA-EXTENDED:NA
TUBESHEETS:304SS Fixed
BAFFLES:CS
HEAD-FRONT:CS TEMA type 'B'
SHELL DETAILS:17"OD X 16'Long, 1-pass. XP Joint
TUBE DETAILS:220 @ 3/4"OD X 16ga. X 16'L straight, 2pass. 1-1/4" Tri.pitch approx.
