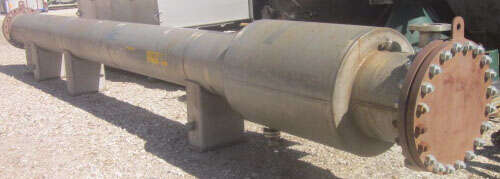

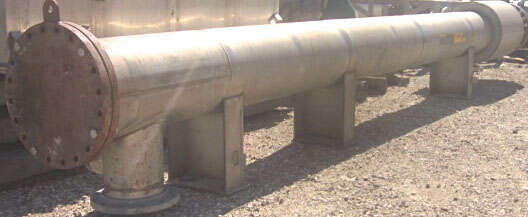

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:CEN Size 20-300
ORIENTATION:Horizontal. 3 Saddles
AREA-BARE TUBE:706SF
TUBESHEETS:316LSS Fixed. 19.625''dia x 1"tk
BAFFLES:CS
HEAD-FRONT:316LSS TEMA type ''C''
SHELL DETAILS:20"OD X 0.1875'tk x 24'Long, 1-pass. XP Joint
TUBE DETAILS:108 @ 1"OD X 18ga. X 25'L straight, 6pass. 15/16" Tri.pitch
