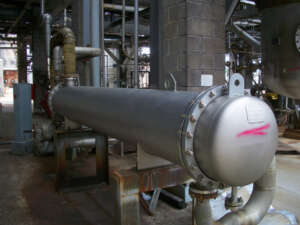

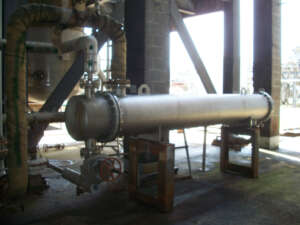

1271564 - HEAT EX, 710SF, DUPLEX-DUPLEX-304SS [S-T-H], 150#-100# [S-T], BEM, 1P-4P, HORIZ [1]

  • MFD.BY:Bendel
  • DATE MFD:2011
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:BEM Size 19-144
  • ORIENTATION:Horizontal 2 saddles
  • AREA-BARE TUBE:710SF
  • AREA-EXTENDED:710SF

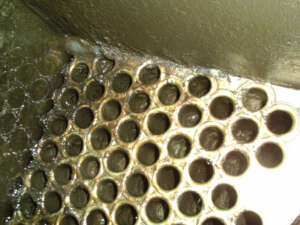

  • TUBESHEETS:Duplex 2205SS Fixed. 24.125"OD x 1.5"tk
  • BAFFLES:Duplex 2205SS 8 @ 17" spacing
  • HEAD-FRONT:304SS TEMA type ''B''
  • SHELL DETAILS:20"OD X Sch10 X 12'Long, 1-pass.
  • TUBE DETAILS:302 @ 0.75"OD X 18ga. X 12'L straight, 4pass.
  • MAT'L CONSTRN-SHELL:Duplex SA790S31803 SS
  • MAT'L CONSTRN-TUBES:Duplex SA789S31803 SS
  • PRESSURE-SHELL:150# @ -20/365°F. Hyd. 208#, ASME NBd
  • PRESSURE-TUBES:100# @ -20/365°F. Hyd.115#, ASME NBd
  • CONNECTIONS-SHELL/TUBE:Shell: 6"in, 3"out Tubes: 4" in, 4" out
  • PRIOR SVC:Water Cooler Condenser
  • COMMENTS:Duplex S31803/2205SS composition- Cr 21-23%, Mn 2% max, Mo 2.5-3.5%, Ni 4.5-6.5%
  • SHIPPING SIZE-W X H X L:3'W X 3'H X 14'L
  • APPROX. WEIGHT-LBS:5100#
