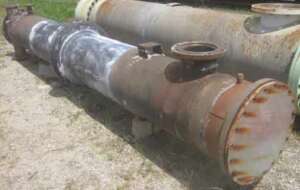

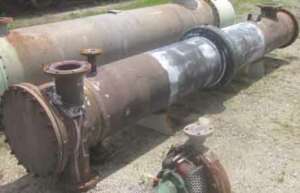

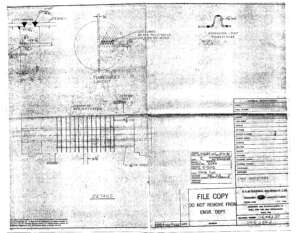

TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
TEMA TYPE:CEN Size 20-180
ORIENTATION:Horizontal 2 Saddles
AREA-BARE TUBE:738SF
TUBESHEETS:316SS Fixed. 20"OD X 1.5'' tk
BAFFLES:CS 14 on 8.75'' pitch
HEAD-FRONT:316SS TEMA type ''C''
SHELL DETAILS:20"OD X 0.25"tk X 12'Long, 1-pass. XP Joint
TUBE DETAILS:320 @ 3/4"OD X 16ga. X 12'L straight, 4pass. 15/16" Tri.pitch
