1271769 - HEAT EX, 94SF, 304SS-304SS-304SS [S-T-H], 435#-578# [S-T], AFS, 2P-2P, HORIZ [1]

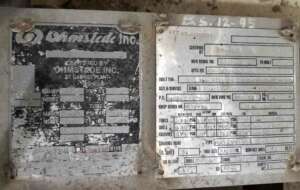

  • MFD.BY:Ohmstede
  • DATE MFD:1995
  • TYPE:Shell and tube heat exchanger. Cylindrical shell with internal tube bundle. Fluid medium passes through shell, over tubes, transferring heat to/from process fluid passing through tubes.
  • TEMA TYPE:AFS Size 8-168
  • ORIENTATION:Horizontal
  • AREA-BARE TUBE:94SF
  • AREA-EXTENDED:94SF
  • TUBESHEETS:304SS, fixed.
  • BAFFLES:304SS
  • HEAD-FRONT:304SS 'A' type removable channel and cover
  • SHELL DETAILS:8” O.D. x 14' t.s-t.s, 18 o/all, 2-pass, horizontal baffle.
  • TUBE DETAILS:34 @ 3/4” OD x 16Ga x 14’ long, 2-pass. Tri pitch. Removable bundle.
  • MAT'L CONSTRN-SHELL:304SS
  • MAT'L CONSTRN-TUBES:304SS
  • PRESSURE-SHELL:435# DP @ 800°F, ASME NB
  • PRESSURE-TUBES:578# DP @ 800°F, ASME NB
  • CONNECTIONS-SHELL/TUBE:Shell: 3”/3" Tubes: 3”in/3"out
  • PRIOR SVC:Ethylene Mixture Steam Preheater

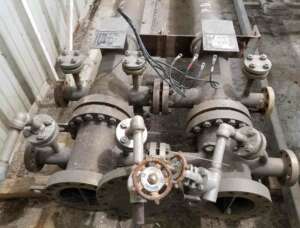

  • COMMENTS:2 Saddles supports. Mounted one over the other in prior service, saddles connecting and nozzles flanged together at front head, tubeside and shellside. Creates 188SF, 4-pass shellside, 4-pass tubeside as currently arranged in series.
  • SHIPPING SIZE-W X H X L:1'W X 3'H X 18'L
  • APPROX. WEIGHT-LBS:1000#
