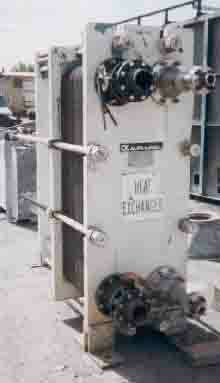

1269764 - HEAT EX, PLATE, 1517SF, TITANIUM, 150#, A-LAVAL, A15BFG [1]

  • MFD.BY:Alfa Laval
  • DATE MFD:1986
  • TYPE:Plate heat exchanger. A series of vertical corrugated heat exchange plates are held together between the end plates of a horizontal screw compression type frame. The plates are separated by flexible, O-ring type, gaskets. Process fluid and heat exchange
  • MODEL:A15BFG
  • AREA:1517SF
  • AREA-MAX.:1517SF
  • MAT'L CONSTRN-PLATES:TI
  • PLATES:135 approx
  • PRESSURE-PROCESS:150# @ 260°F
  • CONNECTIONS-PROCESS:4" [2]
  • CONNECTIONS-MEDIUM:2"[2]
  • PRIOR SVC:Chemical
  • COMMENTS:Vertical
  • SHIPPING SIZE-W X H X L:2'W X 6'H X 8'L
  • APPROX. WEIGHT-LBS:3000#
  • QUANTITY:1
