1271527 - HEAT EX, PLATE, 2460SF, SS, 150#, ALFA LAVAL, M20-MFG [2]

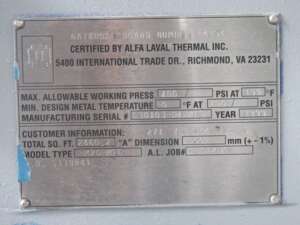

  • MFD.BY:Alfa Laval Thermal, Inc.
  • DATE MFD:1999

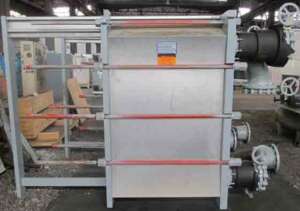

  • TYPE:Plate heat exchanger. A series of vertical corrugated heat exchange plates are held together between the end plates of a horizontal screw compression type frame. The plates are separated by flexible, O-ring type, gaskets. Process fluid and heat exchange
  • MODEL:M20-MFG
  • AREA:2460SF
  • AREA-MAX.:2460SF
  • MAT'L CONSTRN-PLATES:SS
  • MAT'L CONSTRN-FRAME:CS
  • PLATES:271 @ 0 .5 mm thick plates
  • FRAME CAPACITY:Pack length 1220mm
  • PRESSURE-PROCESS:150# MAWP @ 150°F. ASME
  • PRESSURE-MEDIUM:150# MAWP @ 150°F. ASME
  • CONNECTIONS-PROCESS:10” in/out. Approx.
  • CONNECTIONS-MEDIUM:10” in/out. Approx.
  • COMMENTS:Cooler
  • SHIPPING SIZE-W X H X L:2'W X 9'H X 9'6''L
  • APPROX. WEIGHT-LBS:8000#
  • QUANTITY:2
