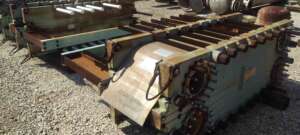

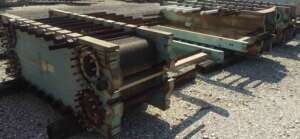

1271501 - HEAT EX, PLATE, 3342SF, 316SS, 385#, ALFA LAVAL, MX25BMS [3]

  • MFD.BY:Alfa Laval Thermal, Inc.
  • DATE MFD:1995
  • TYPE:Plate heat exchanger. A series of vertical corrugated heat exchange plates are held together between the end plates of a horizontal screw compression type frame. The plates are separated by flexible, O-ring type, gaskets. Process fluid and heat exchange
  • MODEL:MX25BMS
  • AREA:3342SF
  • AREA-MAX.:3342SF
  • MAT'L CONSTRN-PLATES:316SS
  • MAT'L CONSTRN-FRAME:CS
  • MAT'L CONSTRN-GASKETS:EPDM
  • PLATES:207 @ 0 .7 mm thick plates
  • FRAME CAPACITY:Pack length 26"approx
  • PRESSURE-PROCESS:385# MAWP @ -5/+200°F. ASME NB
  • PRESSURE-MEDIUM:385# MAWP @ -5/+200°F. ASME NB
  • CONNECTIONS-PROCESS:10” in/out. 1-pass
  • CONNECTIONS-MEDIUM:10” in/out. 1-pass
  • PRIOR SVC:Lean cycle Water / CoolingWater
  • COMMENTS:Arrangement 1X 28MH-751 / 1X 28ML-751
  • SHIPPING SIZE-W X H X L:8'H X 4'W X 8'L
  • APPROX. WEIGHT-LBS:15000#
  • QUANTITY:3
