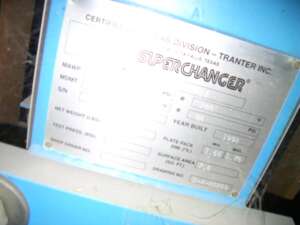

1270279 - HEAT EX, PLATE, 7.6SF, SS, 100#, TRANTER, SPX14, UNUSED [3]

  • MFD.BY:Tranter, Witchitaw Falls TX
  • DATE MFD:1998
  • TYPE:Plate heat exchanger. A series of vertical corrugated heat exchange plates are held together between the end plates of a horizontal screw compression type frame. The plates are separated by flexible, O-ring type, gaskets. Process fluid and heat exchange
  • MODEL:Superexchanger 14
  • AREA:7.6SF
  • MAT'L CONSTRN-PLATES:SS
  • MAT'L CONSTRN-FRAME:CS
  • MAT'L CONSTRN-GASKETS:TBD
  • PLATES:8"W x 24"H approx.
  • FRAME CAPACITY:14 plates approx. 0.6mm thick, closing dimension 1.65-1.76" approx.
  • PRESSURE-PROCESS:100# @ 200°F approx.
  • PRESSURE-MEDIUM:100# @ 200°F approx.
  • CONNECTIONS-PROCESS:2 @ 1-1/2"
  • CONNECTIONS-MEDIUM:2 @ 1-1/2"
  • PRIOR SVC:UNUSED
  • COMMENTS:On original shipping pallet, 3'W x 3'H x 3'L
  • SHIPPING SIZE-W X H X L:12"W X 24"H X 18"L
  • APPROX. WEIGHT-LBS:100#
  • QUANTITY:3
