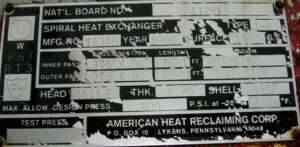

TYPE:Spiral heat exchanger. Dual metal sheets are spiral wound on a mandrel, with spaces between the sheets, creating two separate media pasages, one hot and the other cold. Flat end covers seal each side of the spiral with a central nozzle access to each cha
MODEL:1-H
AREA:1780SF
CROSS SECTION-INNER:60" x 0.375" [9.5mm] spacing (product side).
CROSS SECTION-OUTER:60" x 0.375" [9.5mm] spacing (medium side).
MAT'L CONSTRN-CONTACTS:304SS
PRESSURE-PROCESS:100# MAWP @ 400°F. Hyd. 174# ASME NB
PRESSURE-MEDIUM:100# MAWP @ 400°F. Hyd. 174# ASME NB
CONNECTIONS-MEDIUM:4” in/out
COMMENTS:4'10" OD x 5'9” long, horizontal. Hinged heads, 304SS clad CS 2.25"thick. Shell 0.25" thick.n1 head C.S. with 316S.S. clad face.n1 head C.S. with Teflon gasket.nMounted on I-beam skid.
