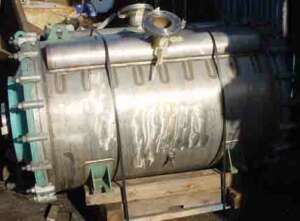

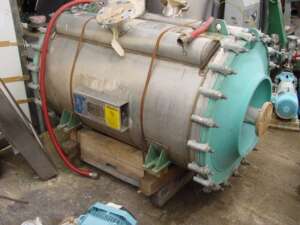

1269986 - HEAT EX, SPIRAL, 1880SF, 316SS, 100#-100#, A-LAVAL, 1-H, UNUSED [1]

  • MFD.BY:Alfa Laval, Nevers, France
  • DATE MFD:1991
  • TYPE:Horizontal spiral heat exchanger. Dual metal sheets are spiral wound on a mandrel, with spaces between the sheets, creating two separate media pasages, one hot and the other cold. Flat end covers seal each side of the spiral with a central nozzle access
  • MODEL:SHE 1-H
  • AREA:940SF/ 94.16SM
  • CROSS SECTION-INNER:8MM. 2MM thick
  • CROSS SECTION-OUTER:7MM. 2MM thick
  • MAT'L CONSTRN-CONTACTS:316SS. Outer head material C.S.
  • PRESSURE-PROCESS:104# @ 212°F ASME sect VIII, Hyd.155#
  • PRESSURE-MEDIUM:104# @ 212°F ASME sect VIII, Hyd.155#
  • CONNECTIONS-MEDIUM:4"(2)
  • PRIOR SVC:UNUSED. Designed for Dowtherm on inner channel, Water on outer.
  • COMMENTS:37"dia./950MM X 59"L /1500MM. Not ASME stamped, made in France. Horizontal support saddles. Still on original shipping skid.
  • SHIPPING SIZE-W X H X L:4'W X 4'H X 7'L
  • APPROX. WEIGHT-LBS:6000#
  • QUANTITY:1
