1271711 - HEATER, 18.6MM BTU.HR, 300#, 750°F, HOT OIL, GAS FIRED, HEATEC, UNUSED [1]

  • MFD.BY:Heatec
  • DATE MFD:2010
  • TYPE:Fluid Heater, Vertical
  • MODEL:VHCI 10010-50-G
  • SIZE:12' dia. x 26' high.
  • STYLE:Vertical, cylindrical.
  • MAT'L.CONSTRN:CS
  • TUBES:8" @ 300# RFWN fluid connections. 2 concentric coils each with 5" connections. 46 turns total, 5" dia 25' long vertical bundle, 1457SF total area, Hydrotest 513 psig, ASME nameplated. 1040gallon capacity.
  • EFFECTIVE AREA:1457SF
  • BTU/HR:18.6MM Btu Hr output, 24mm Btu/Hr input, design.
  • COMBUSTION-BURNER(S):Lo-Nox directed Magna Flame N.American 4384-18/X9125.
  • COMBUSTION-BLOWER:Combustion air blower 4357SCFM.
  • TEMPERATURE:750°F max.
  • PRESSURE:300#DP @ -20°F to 750Deg F DT.
  • CIRCULATION PUMP:No. Available extra
  • THERMAL FLUID:Dowtherm
  • PRIOR SVC:UNUSED. Designed for product inlet temp 473Deg F @ 166# max, out 528Deg F @ 137psig @ 1465GPM

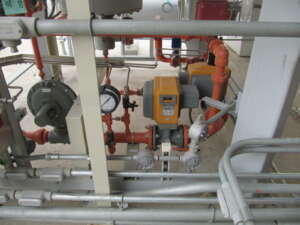

  • COMMENTS:Combustion Air preheater from 2.5MM Btu/Hr duty/1723SF Economizer flue gas, 5900CFM approx, 1.422MM Btu/Hr, via 36" x 48" ductwork and exiting to stack. 3" fuel gas piping. Burner, regulators, gauges. and local controls, Fireye, Maxon SmartLink Fuel mana
  • SHIPPING SIZE-W X H X L:12'W X 12'H X 30'L
  • APPROX. WEIGHT-LBS:30000#
  • QUANTITY:1
