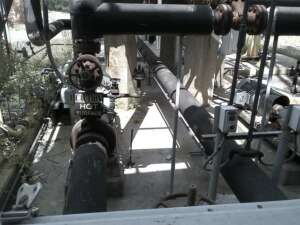

1271504 - HEATER, 19MM BTU.HR, 200#, 750°F, HOT OIL, GAS FIRED, S.WELLS [1]

  • MFD.BY:Struthers Wells
  • DATE MFD:1998
  • TYPE:Petrochem or Hot Oil. Thermal Fluid Heater, liquid phase
  • MODEL:9CV25.5(2)
  • SIZE:10' dia. X 27'long body approx.
  • STYLE:Vertical type heater w/convection section 9'3"high plus 4'hood x 10'long x 5'wide flanged and bolted on top of radiant section. Stack 30"dia x 27'high. Wt 2600#
  • MAT'L.CONSTRN:CS
  • TUBES:6" 28 @ 26'high, ~1100SF Radiant. Convection horizontal finned tubes, 36 @ 9'long, ~500SF bare, 5fins/inch, 1" high, extd ~6269SF area.
  • EFFECTIVE AREA:1600SF bare, 7269SF total extended

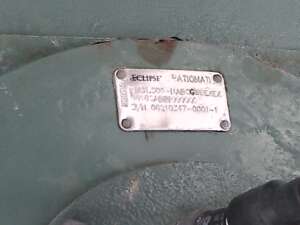

  • BTU/HR:19MM Btu/Hr Max designed input per OEM. Efficiency approx. 90%. Equipped with 5MM BTU/HR Eclipse burner as all required for last service. DuraPulse electronic Burner controls.
  • COMBUSTION-BURNER(S):[1] 5MM Btu Mfd John Zinc VYD-PC Size 14.
  • COMBUSTION-BLOWER:Originally blower w/air filter and 16"dia stack air inlet and motorized damping valve
  • TEMPERATURE:750°F DT
  • PRESSURE:200# DP 346#Hyd ASME
  • CIRCULATION PUMP:100HP Kontro sealess, 900gpm @ 180tdh. [2]
  • THERMAL FLUID:Therminol 66
  • PRIOR SVC:Designed as a Charge Heater, approx. 50000pph. Used approx. 30days only as Thermal fluid heater.
  • COMMENTS:2 lifting trunnions. Approx 5" castable or fiber refractory lined bottom, ceramic fiber walls. Approx. 30''dia x 27'high Stack, 75'oah. Laid down ready to ship.
  • SHIPPING SIZE-W X H X L:10'W X 10'H X 44''L
  • APPROX. WEIGHT-LBS:63000#
  • QUANTITY:1
