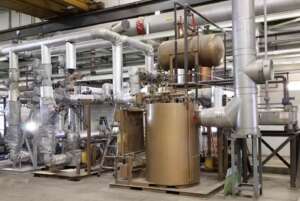

1272194 - HEATER, 3.2MM BTU.HR, 150#, 650°F, HOT OIL, GAS FIRED, FULTON [1]
MFD.BY:Fulton Thermal Corp.
DATE MFD:2014
TYPE:Hot Oil. Thermal Fluid Heater, liquid phase
MODEL:FT-0320-C
SIZE:48" dia. x 5' high approx. body.
STYLE:Vertical, cylindrical.
MAT'L.CONSTRN:CS
TUBES:2"ID x 0.154" thick approx. 2 coils, 4 pass design.
EFFECTIVE AREA:230 Sq.Ft.
BTU/HR:3.2MM
COMBUSTION-BURNER(S):Gas. 4mm Btu/Hr.
COMBUSTION-BLOWER:Driven by Baldor 5HP motor 1/60/115-230V, 3450 rpm, Fr.215TC.
TEMPERATURE:650°F max.
PRESSURE:150# @ 650°F
CIRCULATION PUMP:3"std. Connections. 20HP motor, 3/60/440v. Fulton spec. 250gpm recommended flow rate. Pump on base, connected under Expansion /Dearation/Thermal Buffer tank w/2 additional similar system transfer pumps skid mounted separately.
COMMENTS:Skid mounted package system, with controls [1/120v, 20A], piping, regulators, gauges, etc. on local skid 6'w x 8'long. 14"dia. Stack outlet, 18" dia pipe stack. Thermal transfer fluid pump included. Last used 2019. Accumulator/ Expansion tank package skid
