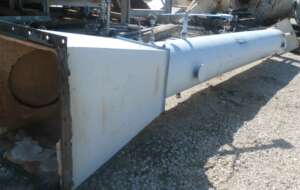

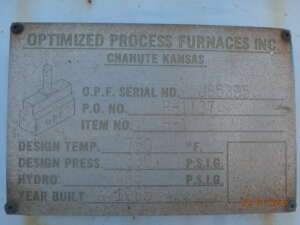

- MFD.BY:Optimized Process Furnaces Inc
- DATE MFD:1985
- TYPE:Petrochem Heater.
- MODEL:Horizontal Box type heater.
- SIZE:8' wide. X 13'long x 11'high body approx.
- STYLE:Horizontal box type w/convection section.
- MAT'L.CONSTRN:CS Shell, 1/4" thick. Refractory lined
- TUBES:CS SA106 GrB, 32 @ 3.5"OD, 0.216" x 7'6"long. [Rad].12 @ 32 @ 3.5"OD, 0.216" x 7'6"long [Conv]. Horizontal. Connection 2 @ 3" 300# RFWN in & out. 6 fins/inch, 0.050" thick x 0.75" high.
- EFFECTIVE AREA:200SF approx. [164 rad/ 36 conv]
- BTU/HR:3.2MM BTU/HR. Heat absorbed.
- COMBUSTION-BURNER(S):1 @ 3.2MM Btu heat release. Mfd John Zink PMT-CH-4-3.
- COMBUSTION-BLOWER:10HP approx.
- TEMPERATURE:750Deg F. ASME
- PRESSURE:330# Hyd. 495#. ASME
- CIRCULATION PUMP:NA
- THERMAL FLUID:Crude oil
- PRIOR SVC:Feed 255psig @ 545 Deg F.
- COMMENTS:Horizontal box type heater.
- SHIPPING SIZE-W X H X L:8'W X 11'H X 14'L
- APPROX. WEIGHT-LBS:25000#
- QUANTITY:1
