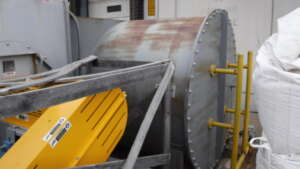

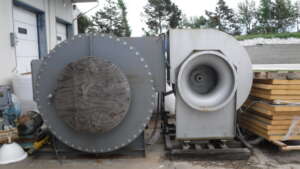

1272138 - HEATER, HOT AIR HEATER, 20MM BTU.HR, 900°F, N.GAS, HORIZONTAL, UNUSED [1]
MFD.BY:DAYCO Pottstown, PA
DATE MFD:2008
TYPE:Hot Air Heater. Burner fires into a chamber and centrifugal fan blows hot air to process.
MODEL:DGF20000-1155
SIZE:20000CFM, 20MM BTU/HR
STYLE:Horizontal
MAT'L.CONSTRN:CS
TUBES:NA
EFFECTIVE AREA:NA
BTU/HR:Input 20MM Btu Hr.
TEMPERATURE:900°F
PRESSURE:Atm#
CIRCULATION PUMP:NA
THERMAL FLUID:NA
PRIOR SVC:Unused

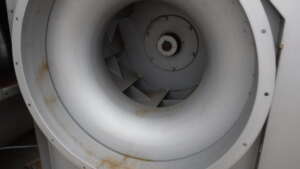

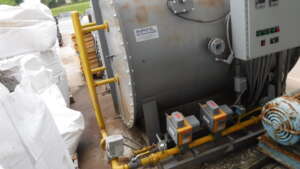

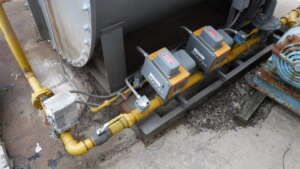

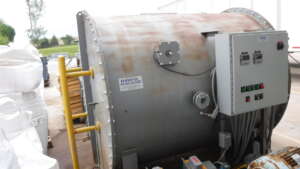

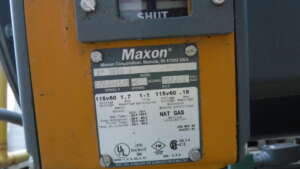

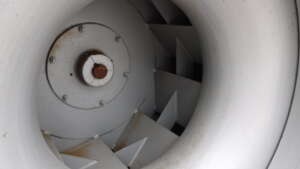

COMMENTS:With gas mgmt system & Controls. Maxon Burner gas train with dual, 2"-5000-1, 4.8psi, 1/60/115V safety shut-off control, System skid mounted. 40HP, 3/60/230-460V, TEFC, Fr 324T motor, belt drive to Cincinnatti HBBI-330 centrifugal fan, 20000CFM.
