1268742 - HEATER, HOT OIL, ELECT, 60KW, 150#, 600°F, CHROMOLOX, PFOV-650-60 [1]

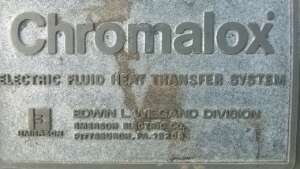

  • MFD.BY:Chromalox
  • DATE MFD:1965 approx.
  • TYPE:Hot Oil heater. Electric element, thermal fluid, immersion heater.
  • MODEL:PFOV-650-60, 3-zones
  • SIZE:20KW per heater, (3) mdl. TMO 620S E4 in series
  • MAT'L.CONSTRN:CS
  • BTU/HR:204,000 approx.
  • CONTROLS:Yes. 115V
  • TEMPERATURE:300-600°F approx.
  • PRESSURE:150# max
  • CIRCULATION PUMP:5HP
  • THERMAL FLUID:Dowtherm
  • PRIOR SVC:Thermal transfer oil heater.

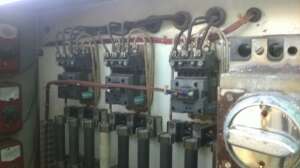

  • COMMENTS:Complete w/controls. Contactor & Thermostat/controller for each element, front panel mounted thermostat for 2 of them. Packaged, portable. 3 heating elements/3-zones.
  • SHIPPING SIZE-W X H X L:4'W X 3'H X 7'L
  • APPROX. WEIGHT-LBS:1700#
  • QUANTITY:1
