- MFD.BY:Allis Chalmers/ Five Lilles Cail
- DATE MFD:1954 approx.

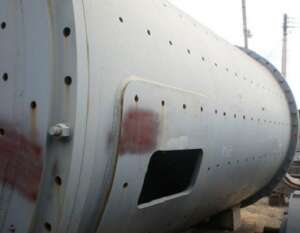

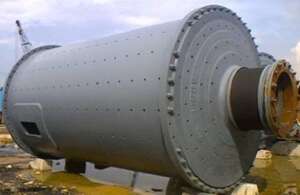

- TYPE:Ball Mill. Continuous operation. Overflow type.
- DIAMETER:10'ID
- LENGTH:18'
- MAT'L.CONSTRN-SHELL:CS
- MAT'L.CONSTRN-JACKET:NA
- MATLS.CONSTRN-LINER:NA
- SHELL-TYPE:Bolted ends, welded cylinder 1.5" thick. Cast heads 4.25" thick w/integral Trunnion. Pedestal type bearings/supports. 120degree brgs, no inserts.
- JACKET-TYPE:NA
- MEDIA:NA 30+ tons CS balls required [Extra $450/Ton]
- DRIVEN BY:NA. Formerly 800HP 3/60/4000V 890rpm Synchronous motor.
- DRIVEN VIA:Bullgear 280 tooth, 12" wide, good condition. 21 tooth pinion, worn. Gear reducer 3.7:1. 18 RPM approx. Gear guard. No trunnion bearing inserts. Overflow sump, feed spout controls.
- CAPACITY:20-40tph approx., depending on product characteristics[ 85% @ <80M w/3/8" feed, 95% <200M w/1/4" feed]
- COMMENTS:Pedestal type bearings/supports. No liner.
- SHIPPING SIZE-W X H X L:11'W X 11'H X 24'L
- APPROX. WEIGHT-LBS:180000#
- QUANTITY:1
